Pneumatic piston quarter turn actuatorAP

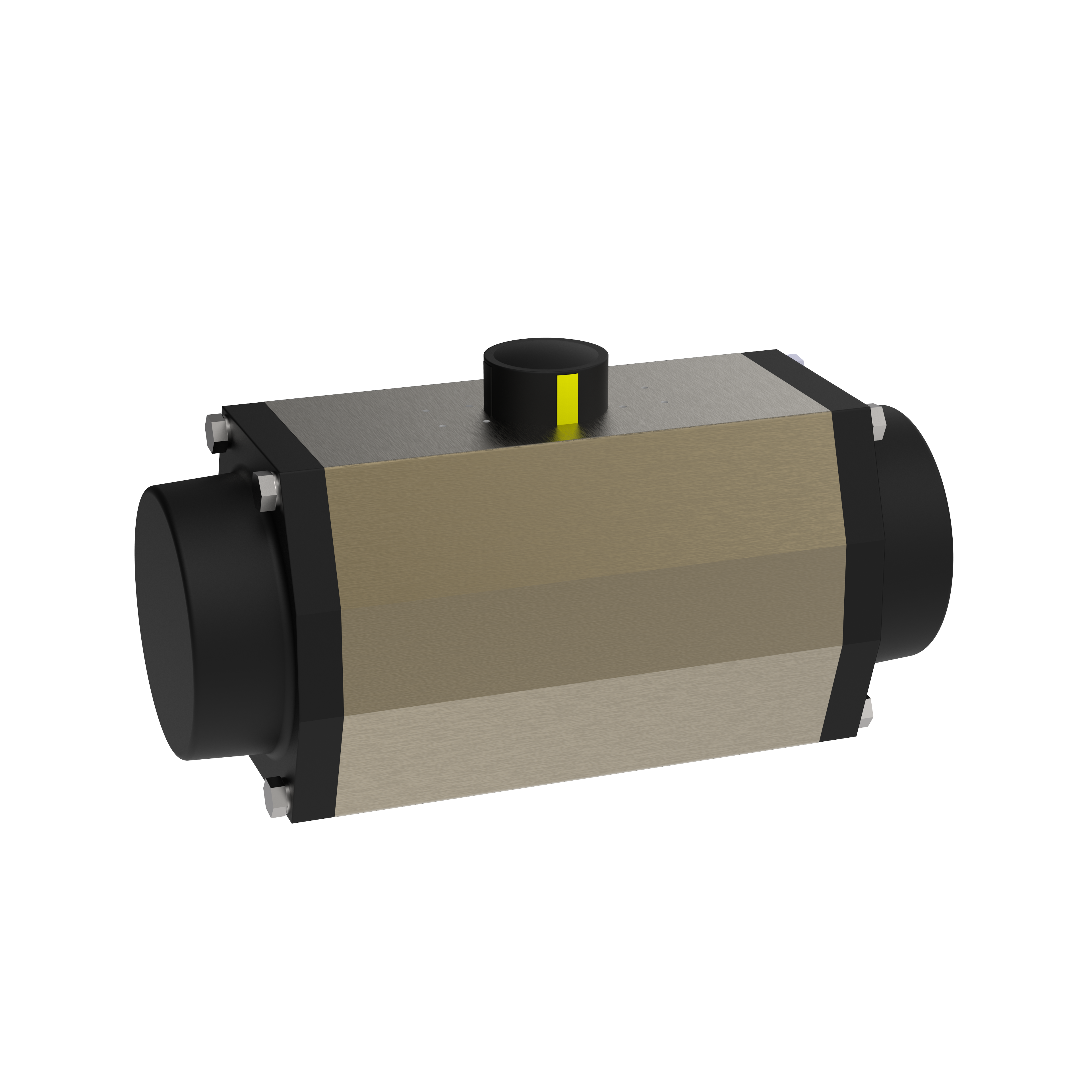

Quarter-turn pneumatic rotary piston actuator.


Actuator function
  • single-acting – SR
  • double-acting – DA
Type of actuator
  • pneumatic piston actuator – quarter-turn
Working angle of rotation
  • 0° – 90°
Control force
  • 6-5 – 3876 Nm – single acting
  • 5.9 – 4312 Nm – double acting
Supply pressure range [kPa]
  • 200 – 800
Working temperature range
  • -20 °C to +80 °C – Buna N seal
  • -20 °C to +150 °C – Viton seal
  • -50 °C to +80 °C – Silicon seal
Optional accessories:
  • 3/2 – 5/2-way control valve
  • pneumatic positioner
  • electropneumatic positioner
  • position transmitter
  • limit switches
  • pressure reducing station unit filter
  • lock-up valve
