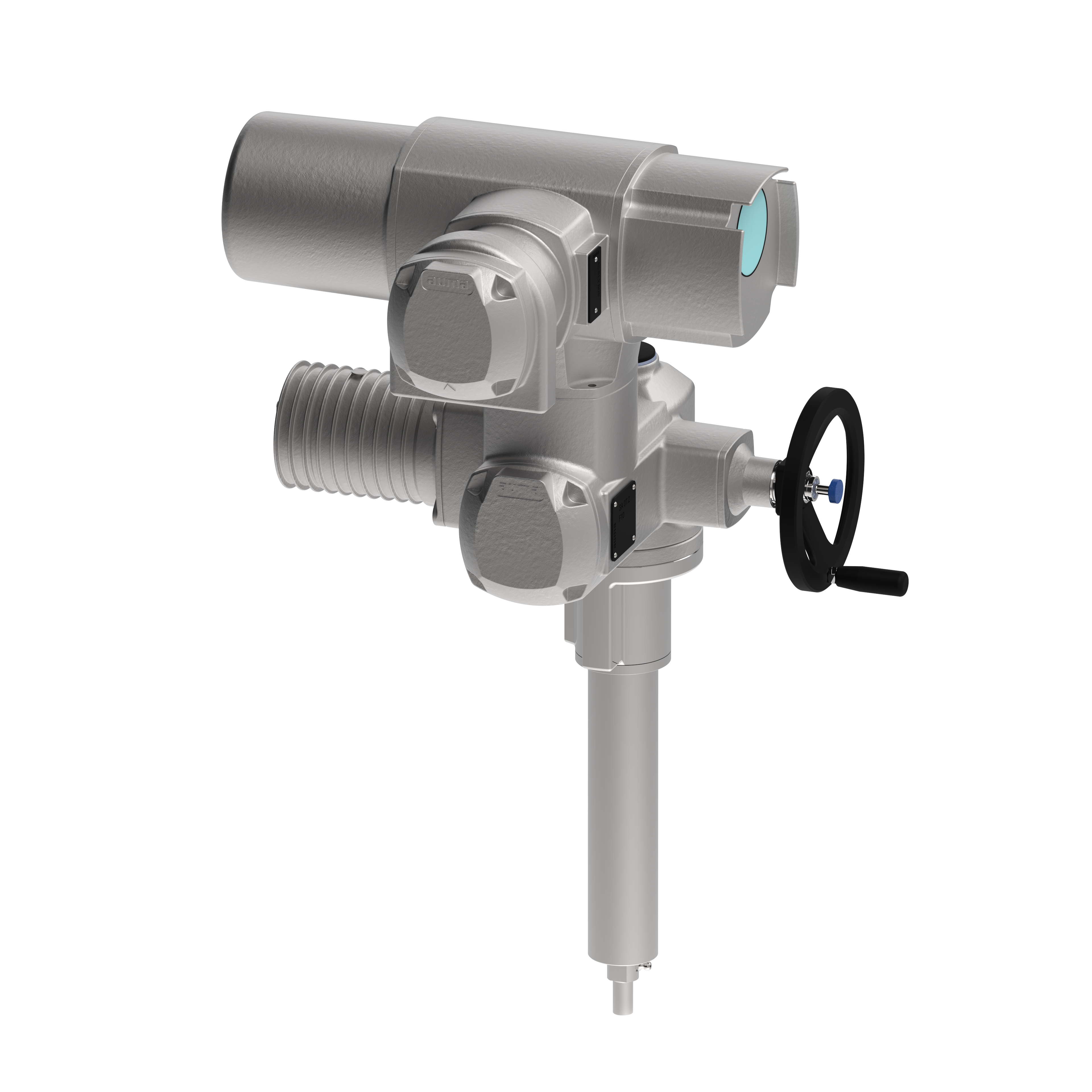

Electric actuatorsAUMA, Rotork, Regada, etc.

Linear or rotary electric actuators with a wide range of control options and communication signals.

Actuator function

• linear (direct)
• quarter turn
• multi-turn

Control signals

• 3-position
• current loop 4 .. 20 mA
• HART
• Profibus
• Fieldbus
• Modbus

Working temperature range

• -30 °C to +70 °C – standard
• -60 °C to +60 °C – low-temperature design

Ingress protection

• IP 65, 66, 67

Manual control

• side handwheel

Optional accessories:

• position transmitters
• torque switches
• signaling switches
• control unit AUMATIC AC, Rematic
• transmitter: RWG, MWG, resistive,
• local control
• LCD Display
• reduction gearbox
• design for EEx explosive atmospheres
• back-up power supply
