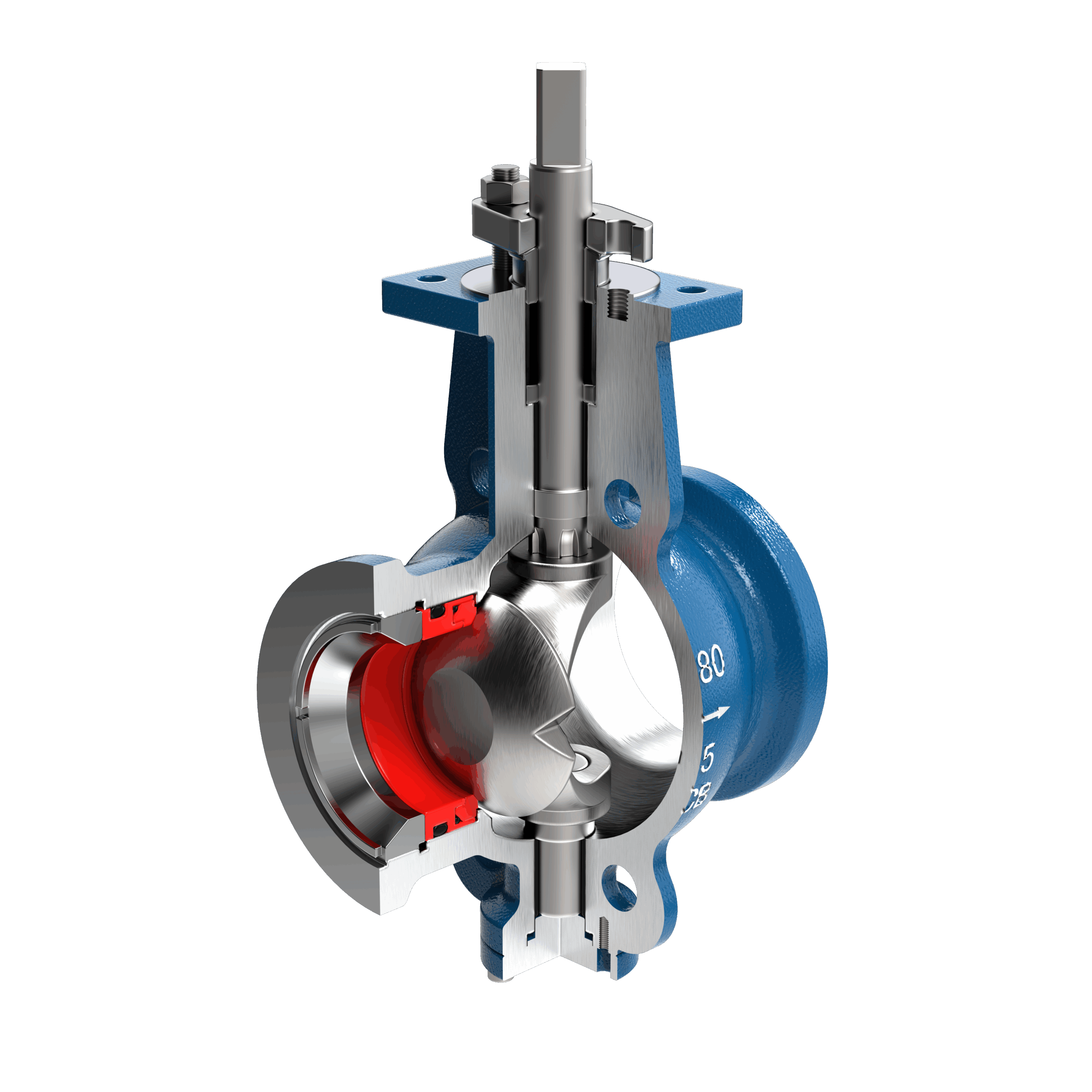

Rotary control valveVA3033.V

Ball control valve with V-port, executed as flanged or wafer design.

Nominal diameters

• DN 25 (1“) – DN 600 (12“)

Nominal pressure values

• PN 10 – PN 63
• Class 150 – Class 600

Design

• V-ball
• reducing noise

Operating temperature range

• -40°C to + 425°C

Flow characteristics

• equal percent

Flow coefficient Kvs

• 27 – 23000 [m³.h^-1]

Leakage class (IEC 60534-4)

• class V – metal seat standard
• class VI – optional with soft seats

Body material

• carbon steel
• stainless steel

Inner parts material

• stainless steel
• other as required

Connection

• flanged

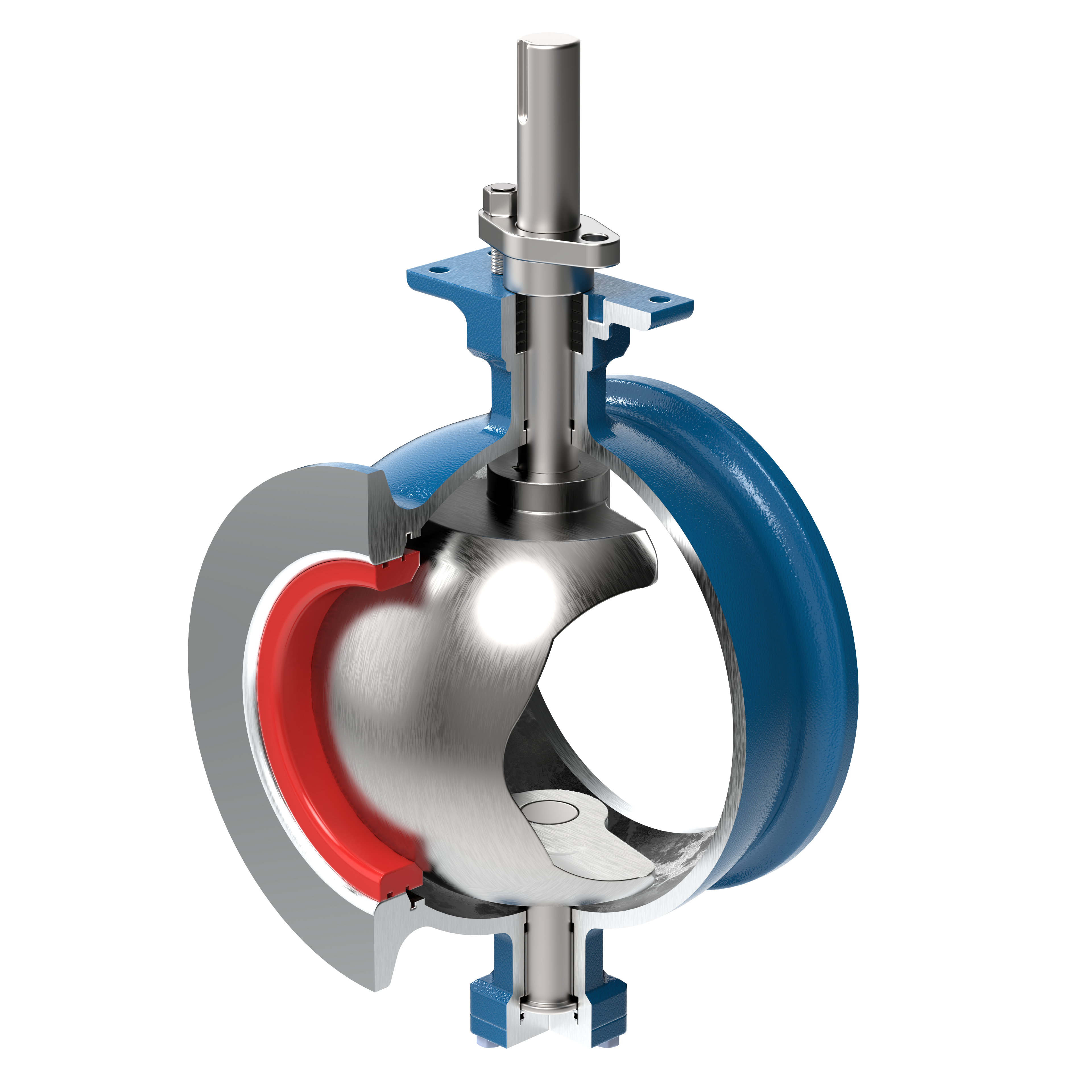

• wafer

Type of actuator

• pneumatic diaphragm or piston
• electric
• electro-hydraulic
• hydraulic
