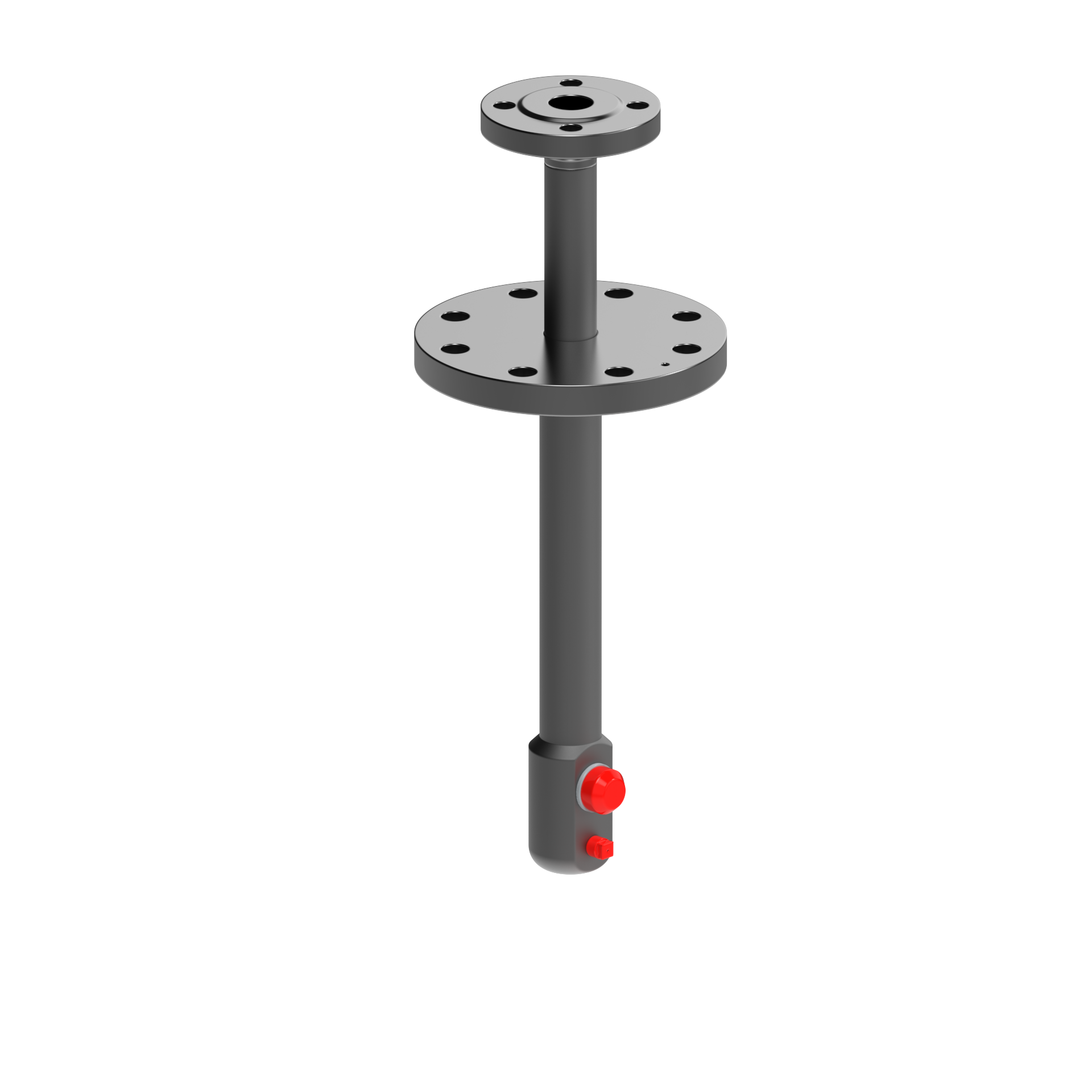

Steam coolerVA7010

Lance steam coolers with a fixed or variable nozzle


Nominal diameters
  • water DN 15 (½“) – DN 50 (2“)
  • steam DN 50 (2“) – DN 200 (8“)
Nominal pressure values
  • PN 40 – PN 400
  • Class 300 – Class 2500
Design
  • lance steam cooler with axial spraying

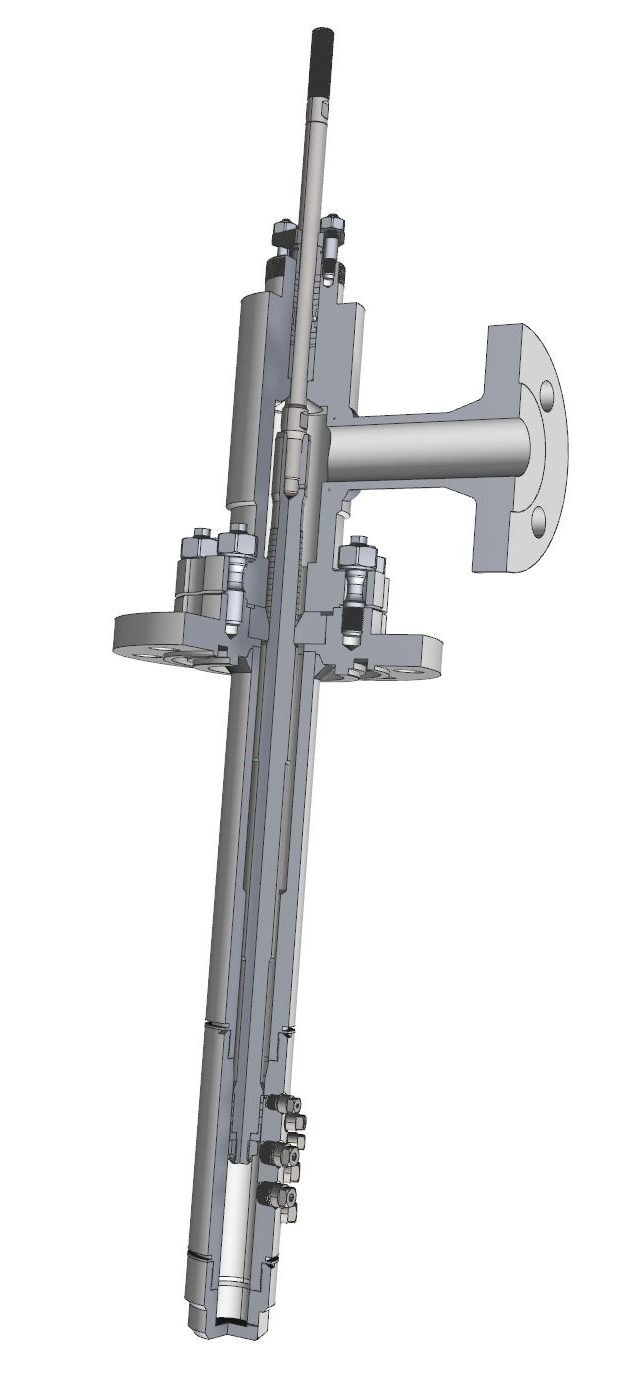

  • spraying nozzle with variable geometry (VA7010.F)
  • spraying nozzle with fixed geometry (VA7010.V)
  • spraying nozzle with progressive opening (VA7010.P)
Operating temperature range
  • 100°C – 560°C
Material
  • carbon steel P265 GH(1.0425), A105
  • alloy steel 16Mo3 (1.5415)
  • alloy steel 17CrMo 9-10 (1.7377)
  • stainless steel X6CrNiTi 18-10 (1.4541)
