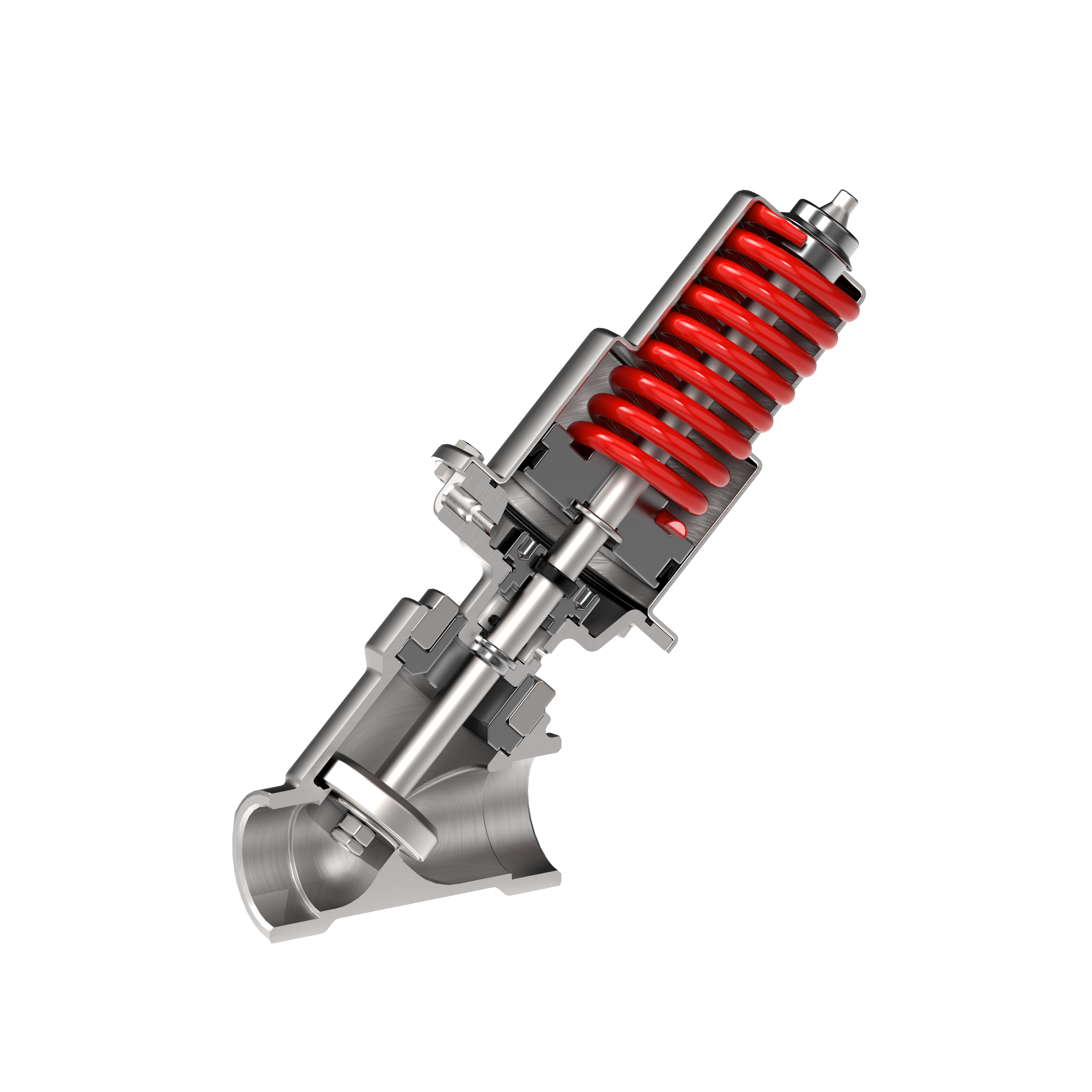

Shut-off valveVA1010.V

Stainless steel shut-off valve with increased tightness class, threaded design


Nominal diameters
  • DN 15 – DN 200
Nominal pressure values
  • PN 10 – PN 25
Design
  • single seated valve
Operating temperature range
  • -30°C to +180°C
Flow characteristics
  • on/off
Flow coefficient Kvs
  • 4,3 – 739 [m3.h-1]
Leakage class  (IEC 60534-4)
  • class IV
Body material
  • stainless steel AISI316/316L
Plug and seat material
  • stainless steel AISI316/316L
Connection
  • flanged – VPFL-FL
  • threaded – VPFL-FF
  • welded – VPFL-BW
Type of actuator
  • pneumatic piston single-acting
  • pneumatic piston double-acting
