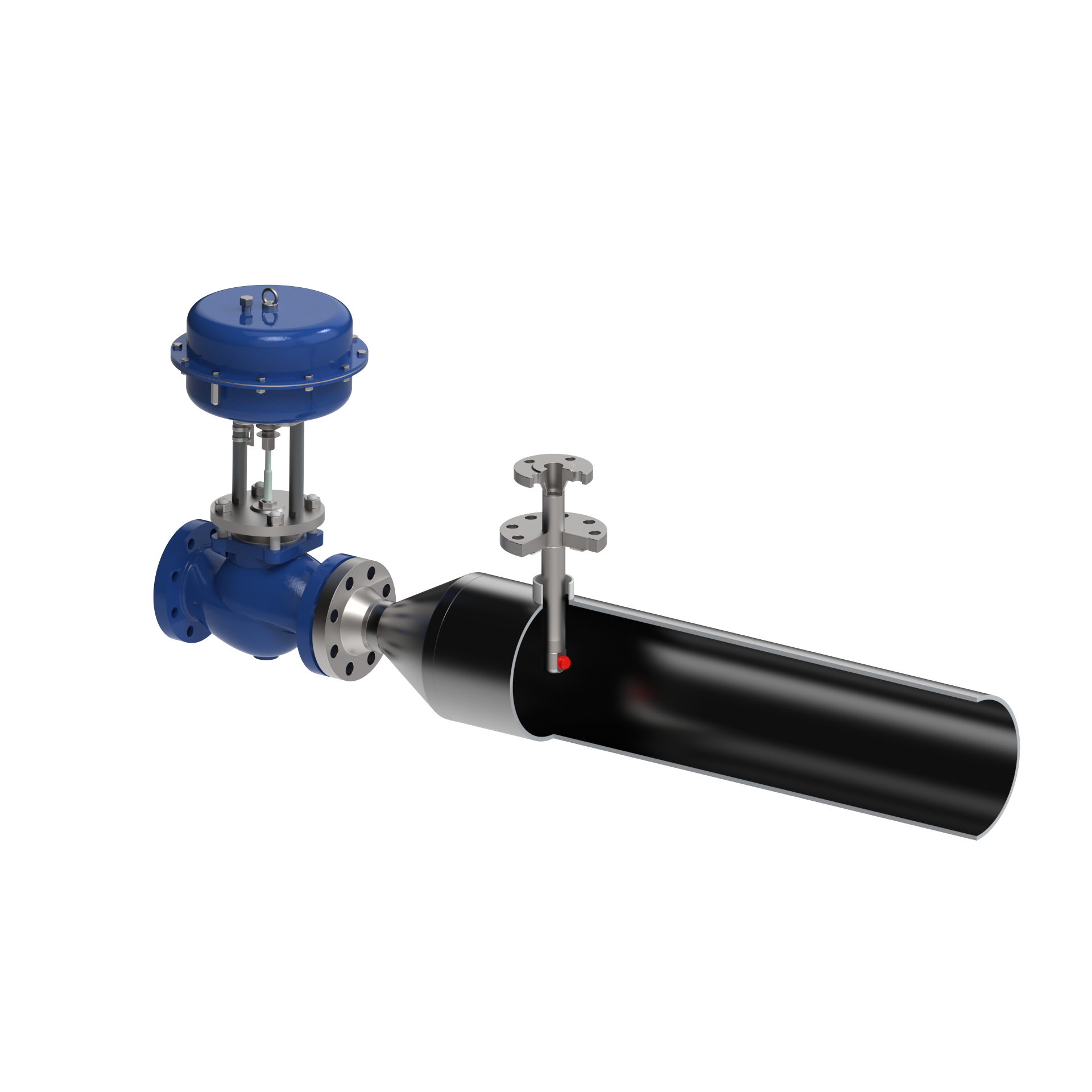

Pressure reduction and cooling stationVA9010

Comprehensive pressure reduction and cooling solution


Nominal diameters
  • inlet DN 40 (1 ½ “) – DN 400 (16“)
  • outlet DN 80 (3“) – DN 1000 (40“)
Nominal pressure values
  • inlet PN 25 – PN 400
  • outlet PN 16 – PN 250
Design
  • special design of seat to reduce the speed and noise of the flowing medium
  • including steam cooler with fixed or variable geometry
Operating temperature range
  • 100 °C – 560 °C
Body material
  • carbon steel GP240 GH(1.0619), A216 WCB
  • alloy steel G16Mo3 (1.5415)
  • alloy steel G17CrMo 9-10 (1.7379)
Material of internal parts
  • stainless steel
  • stellit
End connection:
  • flange
  • welded
Type of actuator
  • pneumatic
  • electric
  • hydraulic
