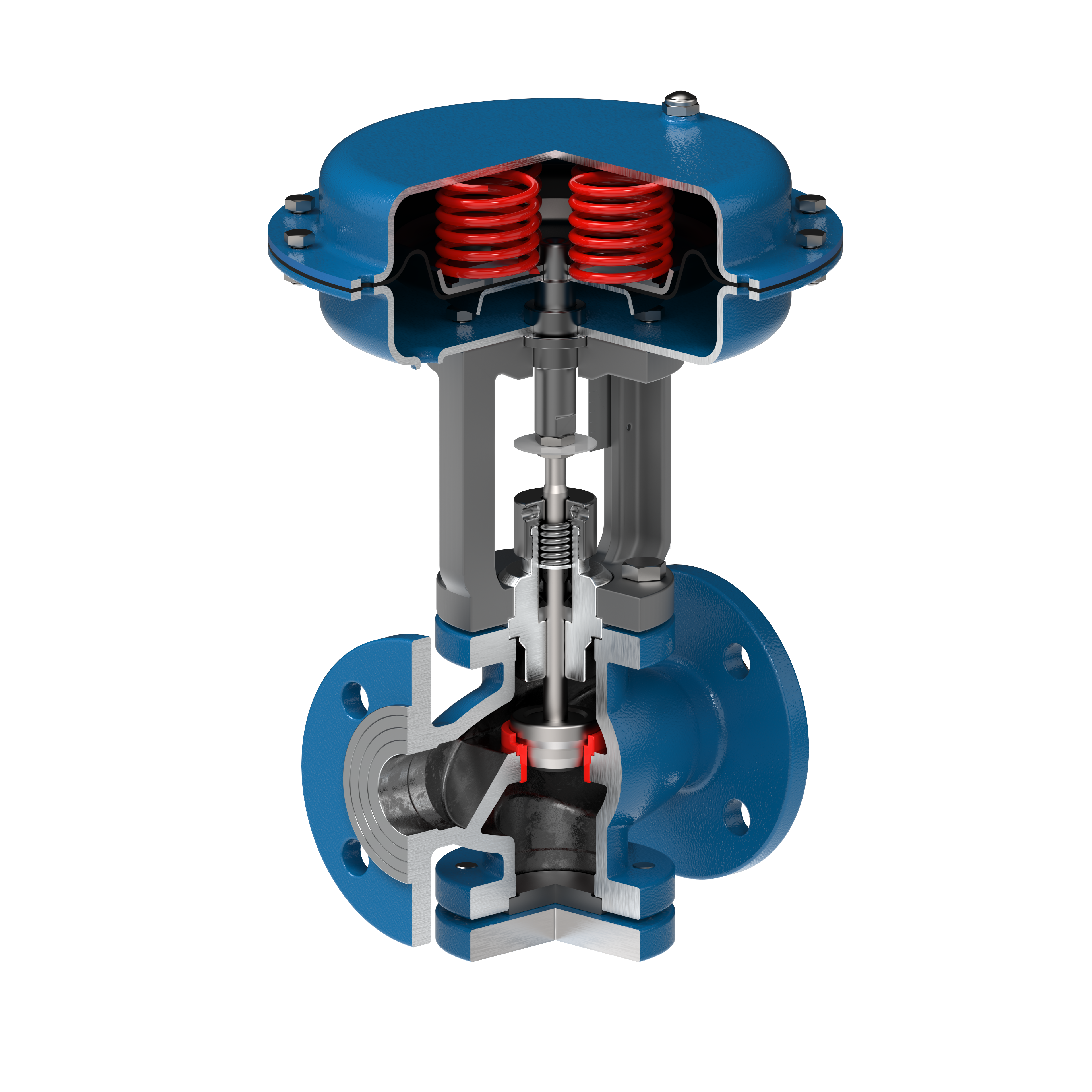

Control valveVA2011.8

Basic range of control valves for universal use with short delivery times


Nominal diameters
  • DN 15 – DN 150
Nominal pressure values
  • PN 16 – PN 40
Design
  • single seated globe valve
Operating temperature range
  • -20°C to +205°C
Flow characteristics
  • linear
  • equipercent
Flow coefficient Kvs
  • 0.09 – 256 [m3.h-1]
Leakage class (IEC 60534-4)
  • Class IV
  • Class V
  • Class VI
Body material
  • ductile iron GGG40
  • carbon steel GP240 GH(1.0619), A216 WCB
  • stainless steel CF8M
Plug and seat material
  • stainless steel AISI 316L, 17-4PH
Connection
  • flange
Type of actuator
  • pneumatic diaphragm (with handwheel)
  • electric
