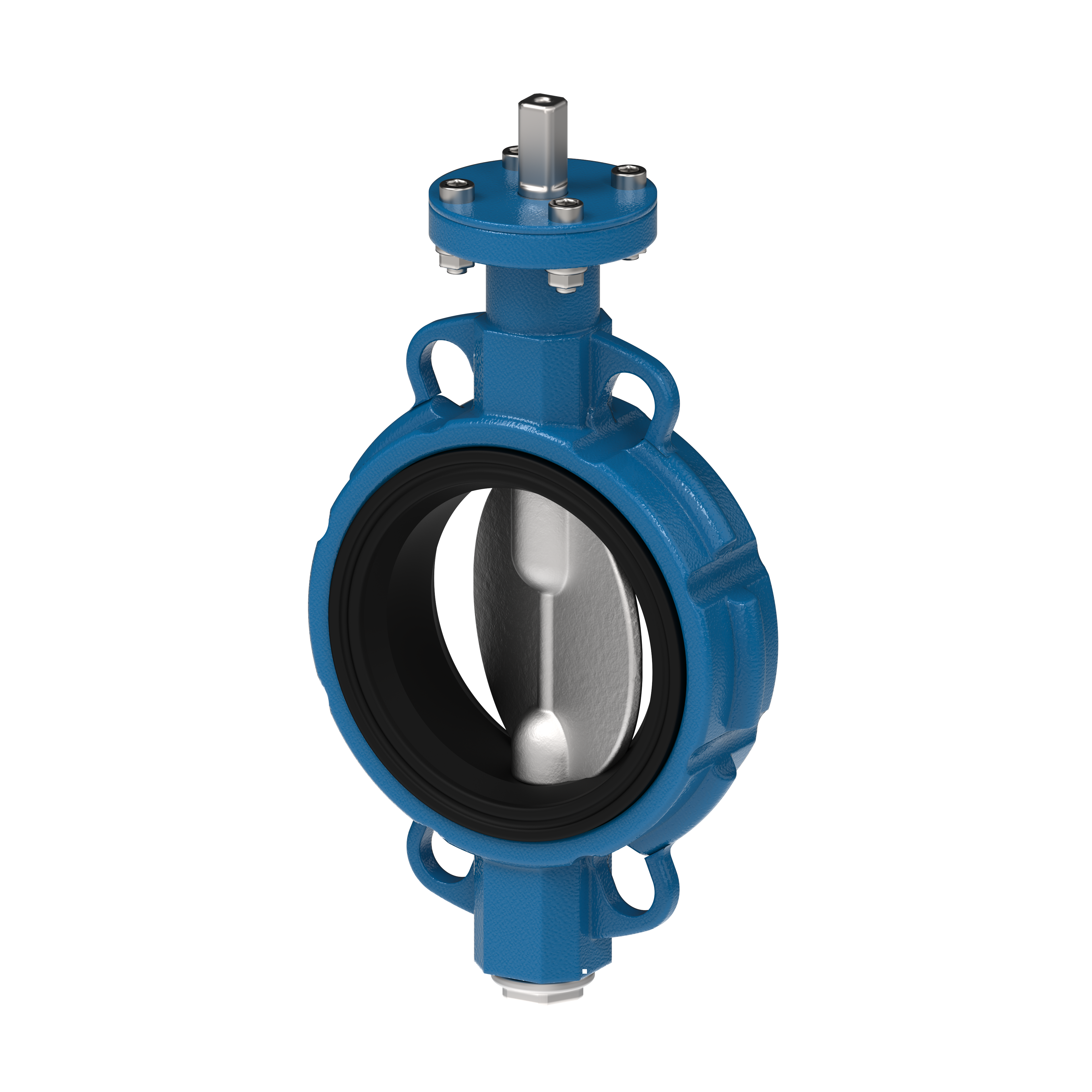

Centric butterfly valveVA5001.S; VA5001.A

Simple structure with variability of different rubber materials and elastomers

Nominal diameters

  • DN 40 (1 ½“) – DN 2000 (80“)

Nominal pressure values

  • PN 6 – PN 16
  • Class 150

Design

  • butterfly valve with replaceable seat

Operating temperature range

  • -20°C to +160°C

Flow characteristics

  • on/off

Flow coefficient Kvs

  • 69 – 51034 [m3.h-1]

Leakage class (EN 12266-1)

  • class “A”

Body material

  • alloy steel
  • carbon steel
  • stainless steel
  • Al/Bronze
  • F51

Disc material

  • alloy steel
  • carbon steel
  • stainless steel
  • Al/Bronze

Seat material

  • NBR, EPDM, EPDM-HT, VITON
  • SILICON, P.T.F.E.
  • and others

Connection

  • LUG
  • WAFER

Type of actuator

  • leverlock operator
  • gearbox with handwheel
  • pneumatic piston
  • hydraulic
  • electric

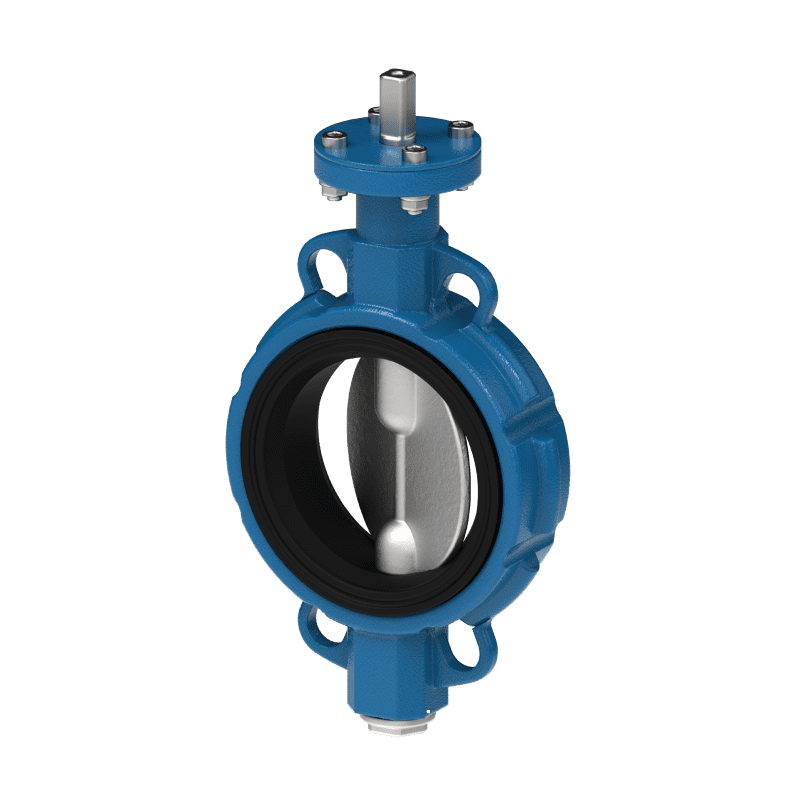

Centrická klapka
Catalogue sheet VA5001.S
