Pressure reduction and cooling station - on the frameVA9030

A modular, ready-to-install solution for steam conditioning.

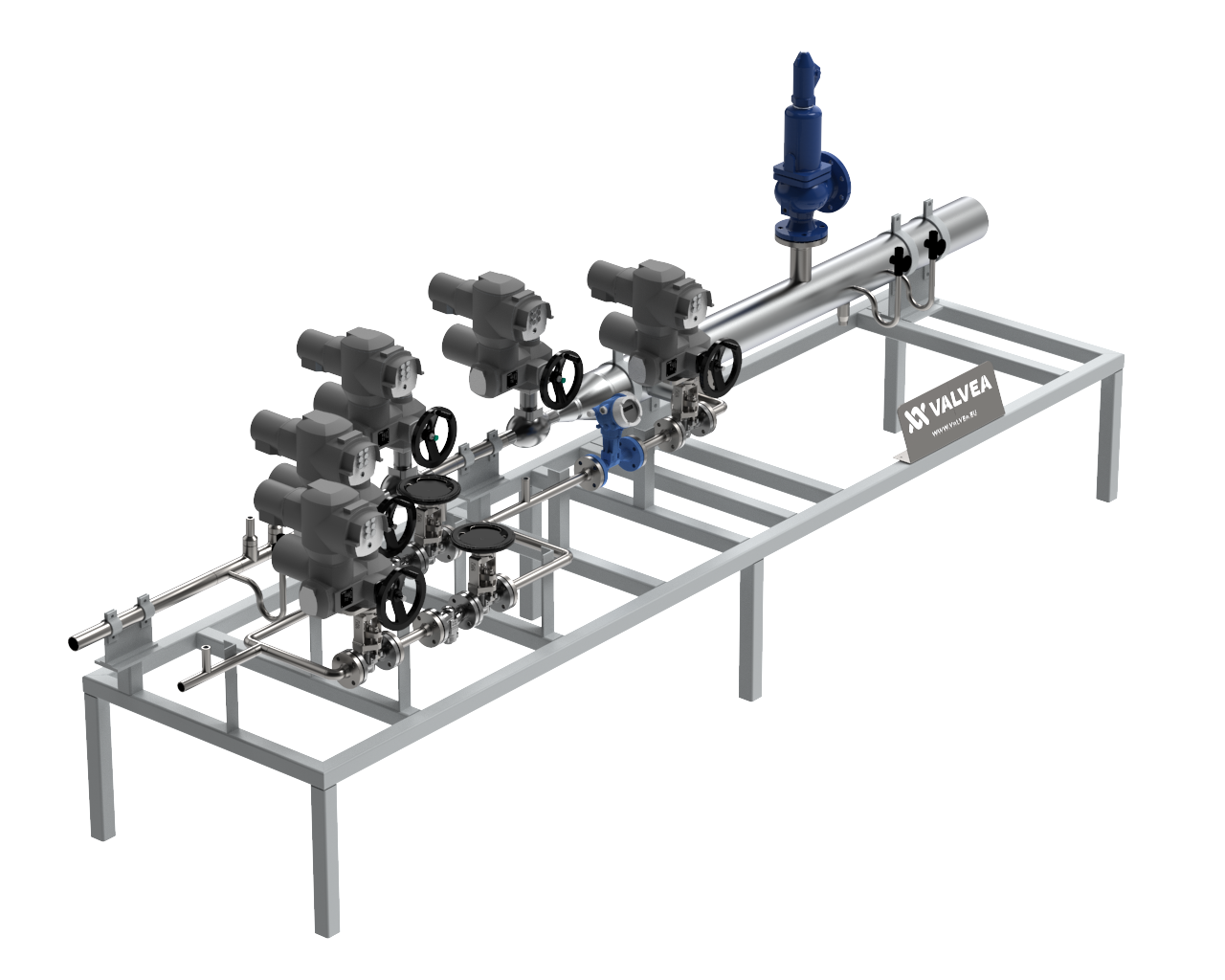

Pressure reduction and cooling station – on the frame, so-called modular skids means compact unit with weight of up to  20 tons and / or  5-11 meters in length. The whole skid´s construction usually includes control valves, safety valves, on/off valves, pipes, tanks, measuring and control parts, electrical equipment and other equipment, all installed on a frame with ready connection points for easy installation in the technology.

Inlet pipe diameter

• DN 40 (2 ½“) – DN300 (12“)

Outlet pipe diameter

• DN 50 (2“) – DN600 (24“)

Nominal pressure

• PN16, PN40, PN63, PN100, PN160, PN250, PN400

Working temperature range

• 100°C – 560°C

Desing standard

• PED, EN13480

End connection

• flanged
• welded

Valve body material

• carbon steel
• alloy steel
• stainless steel

Pipe material

• carbon steel
• alloy steůů
• stainless steel

Actuator type

• pneumatic
• electric
• hydraulic

Optional design

• pressure converter, temperature converter, pressure gauge, thermometer, flow meter, PID controller, control panel, switchboard, frame
