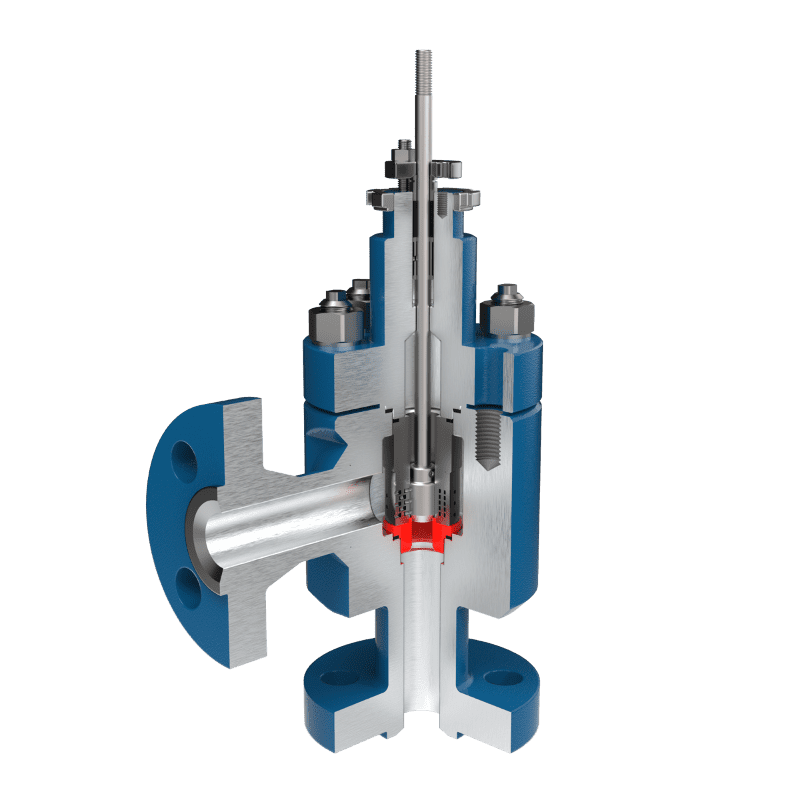

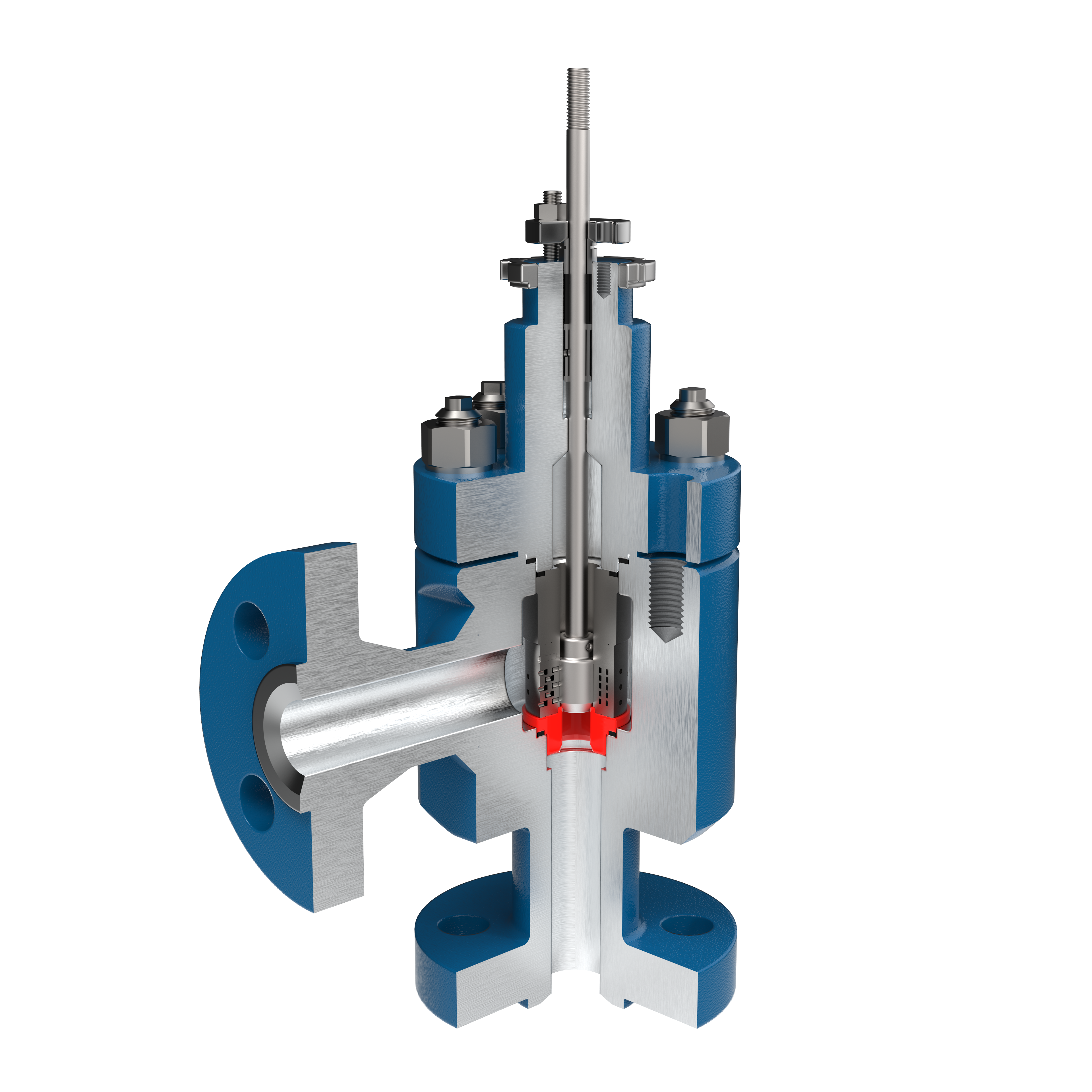

Angle valveVA2012.BK

Angle design for optimising output flow in demanding applications.


Nominal diameters
  • DN 15 (½“) – DN 400 (16“)
Nominal pressure values
  • PN 16 – PN 100
  • Class 150 – Class 600
Design
  • single-seat angle valve with optional perforated plug
Operating temperature range
  • -196°C to + 650°C
Flow characteristics
  • linear
  • equal percent
  • on/off
Flow coefficient Kvs
  • 6 – 2047 [m3.h-1]
Leakage class  (IEC 60534-4)
  • class IV
  • class V
Body material
  • carbon steel
  • alloy steel
  • stainless steel
Inner parts material
  • stainless steel
  • Stellit
  • Monel
  • Hastelloy
Connection
  • flanged
  • welded
Type of actuator
  • pneumatic diaphragm (with handwheel)
  • electric
  • electro-hydraulic
  • hydraulic
