Pneumatic piston quarter turn actuatorAP

Quarter-turn pneumatic rotary actuator

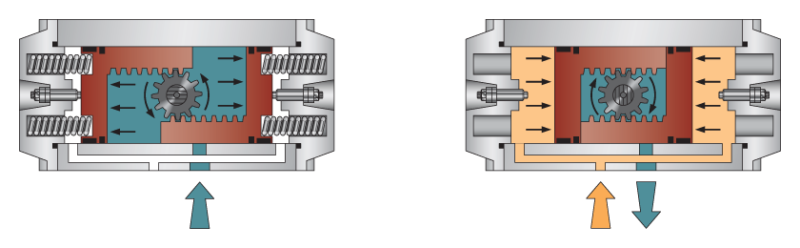

Actuator function

• single acting – SR
• double acting – DA

Type of actuator

• pneumatic actuator – quarter-turn

Angle of rotation

• 0° – 90°

Control force

• 6-5 – 3876 Nm – single acting
• 5.9 – 4312 Nm – double acting

Supply pressure range [kPa]

• 200 – 800

Operating temperature range

• -20 °C to +80 °C – Buna N seal
• -20 °C to +150 °C – Viton seal
• -50 °C to +80 °C – Silicon seal

Accessories:

• 3/2 – 5/2-way control valve
• pneumatic positioner
• electro-pneumatic positioner
• position transmitter
• limit switches
• pressure reducing station unit
• lock-up valve
