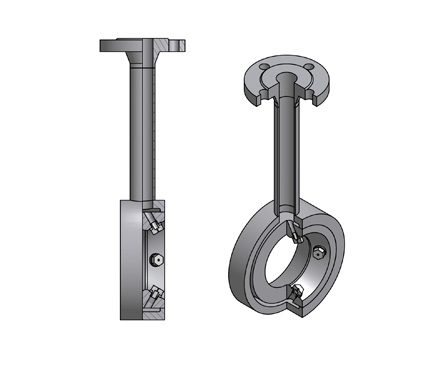

Inter-flange steam coolerSP1

Multiple radial desuperheater with inter-flange installation


Nominal diameters
  • steam DN 80 (3“) – DN 200 (8“)
  • water DN 15 (½“) – DN 25 (1“)
Nominal pressure values
  • PN 40
  • Class 300
Design
  • multiple steam cooler with 4 nozzles with radial spraying
Operating temperature range
  • 100°C – 500°C
Material
  • carbon steel P265 GH(1.0425), A105
  • alloy steel 16Mo3 (1.5415)
  • alloy steel 17CrMo 9-10 (1.7377)
  • stainless steel X6CrNiTi 18-10 (1.4541)
