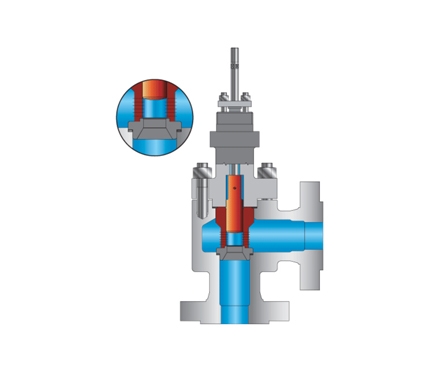

Angle valve

Angle design for optimization of the output flow in demanding applications


Nominal diameters
  • DN 15 (½“) – DN 400 (16“)
Nominal pressure values
  • PN 16 – PN 100
  • Class 150 – Class600
Design
  • single-seat angle valve with possibility of perforated plug
Operating temperature range
  • -196°C to + 650°C
Flow characteristics
  • linear
  • equipercent
  • on/off
Flow coefficient Kvs
  • 6 – 2047 [m3.h-1]
Leakage class  (IEC 60534-4)
  • class IV
  • class V
Body material
  • carbon steel GP240 GH(1.0619); A216 WCB
  • alloy steel G17CrMo 9-10 (1.7379)
  • stainless steel GX5CrNiMo 19-11-2 (1.4408)
Plug and seat material
  • stainless steel
  • stellit
  • monel
  • hastelloy
Connection
  • flange
  • welded
Type of actuator
  • pneumatic diaphragm (with handwheel)
  • electric
  • electro-hydraulic
  • hydraulic
